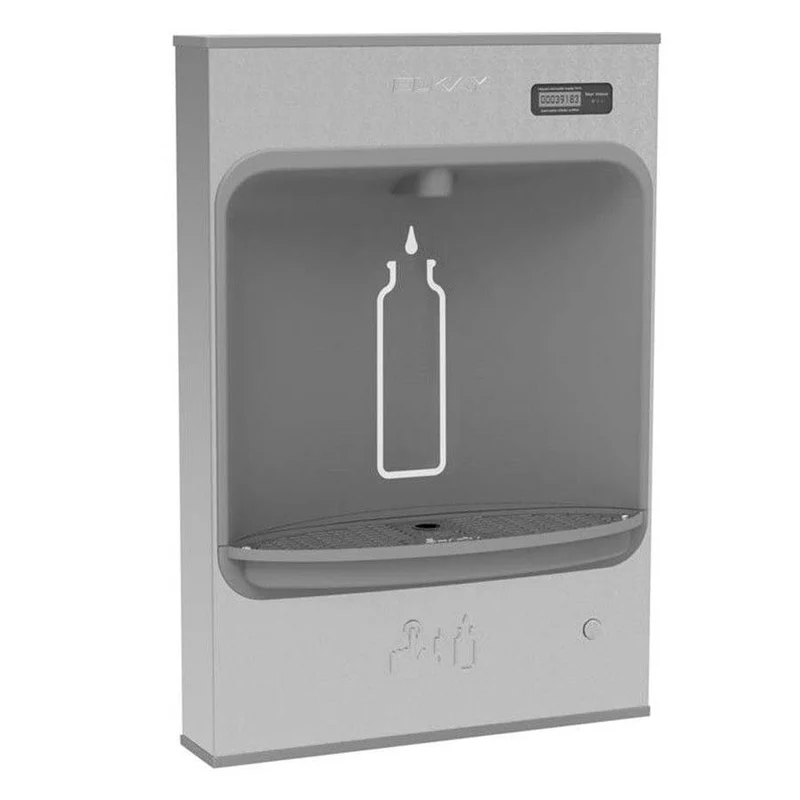

Elkay EMASMB water bottle filling station, mechanical operation

Water bottle filling station with mechanical push button control. Very suitable for educational institutions, healthcare centers, fitness clubs, catering and public spaces. Sensor-activated, compact and wheelchair accessible design, visual filter indicator, easy installation. Please note: The water is not cooled.

   Geusers 1-100

Before installation you will receive an installation drawing from us. For a smooth installation you must ensure the correct connections according to this drawing.

Want to buy or rent multiple water bottle filling stations? touch with us.

[block=Specifications]

• Dimensions: 454mm x 159mm x 657mm (LxWxH)
• Power connection: 220V-230V
• Material: stainless steel
• Mounting: Wall mounting
• Flow rate: 1,9 - 3,8 liters per minute

[block=Downloads]

Download the installation manual (English) here.

Download the specification sheet (English) here.

[block=Description]

EZH2O water bottle filling station | mechanical operation | wall mounting |

Robust filling station for water bottles. This water dispenser does not require a power connection, only a water connection. Very suitable for educational institutions, healthcare centres, fitness clubs, catering and public spaces. Compact and wheelchair accessible design, visual filter indicator, easy installation. This model is mounted on the wall. The water is not cooled.

Water bottle filling station: 1,9 to 3,8 liters of water per minute!

The filling station is operated with a push button on the front. The tap gives a nice, even water flow and does not splash.

The filling station is equipped with a green ticker. This is a counter that shows your users how many bottles have been saved by using this water tap. You are giving a clear sustainable, green message to your users.

Optionally, you can equip the water bottle filling station with a water filter. The dispenser is equipped with a counter that indicates when the filter needs to be replaced. Both the green ticker and the filter indicator work on batteries.

Wall mounted: easy to clean and wheelchair accessible

The wall mounting ensures that the water dispenser does not get in the way of cleaning. There is no obstacle on the floor that needs to be worked around. The wall model can also be hung at a comfortable working height so that you do not have to bend down to fill a bottle. At the same time, the limited depth of the dispenser ensures that the cooler is also easy to operate for wheelchair users.

[block=Delivery and installation]

If we deliver and connect a wall-mounted water cooler or water bottle filling station with or without a water fountain, there are a number of things you need to take care of prior to installation:

• Make sure that there is a freely accessible washing machine tap with a ¾” connection with backflow protection in the correct position (see installation manual of the relevant appliance). If you wish to implement the system with a water block, you must take into account the additional installation dimensions of the water block.
• Make sure that there is a freely accessible earthed socket in the correct position (see installation manual of the device in question).
• If the system is equipped with a drain, such as our water fountains and water bottle filling stations, you must ensure that this drain is in the correct position (see installation manual for the device in question).

Note: if your water pressure is too high (> 4 bar) we will have to install an extra freely adjustable (1-4 bar) water pressure reducer for which we will charge extra. In the exceptional case the water pressure is too low (<2 bar) you can install a booster pump if desired for which we will charge extra.

The installation that we can provide for you includes a ¾” connection nipple with quick coupling, water stop, pressure reducing valve (3 bar only for the bubbling version) and max. 2 metres of flexible hose.

In pricing the installation costs, we assume a maximum of 30 minutes installation time per system with a lead time of maximum 15 minutes. In the event of a serious exceedance of this installation time per system by more than 50% (i.e. from one hour including lead time), we will charge extra man-hour costs per period of 30 minutes at the applicable rate.
