Elkay LZWSSMJO automatic water bottle filling station including water filter

Fill your water bottles in an instant. Ideal for educational institutions, healthcare centres, fitness clubs, hospitality and public spaces. Sensor-activated, compact and wheelchair accessible design, visual filter indicator, easy installation. Please note: The water is not cooled. You can add a built-in water cooler to tap chilled water.

   Geusers 1-100

Before installation you will receive an installation drawing from us. For a smooth installation you must ensure the correct connections according to this drawing.

Want to buy or rent multiple water bottle filling stations? touch with us.

[block=Specifications]

• Dimensions: 456mm x 208mm x 646mm (LxWxH)
• Includes Elkay WaterSentry water filter (max. capacity 11.356 liters)
• Power connection: 220V-230V
• Material: stainless steel
• Mounting: Wall mounting
• Flow rate: Quick fill: 4,2 - 5,7 liters per minute

[block=Downloads]

Download the installation manual (English) here.

Download the specification sheet (English) here.

[block=Description]

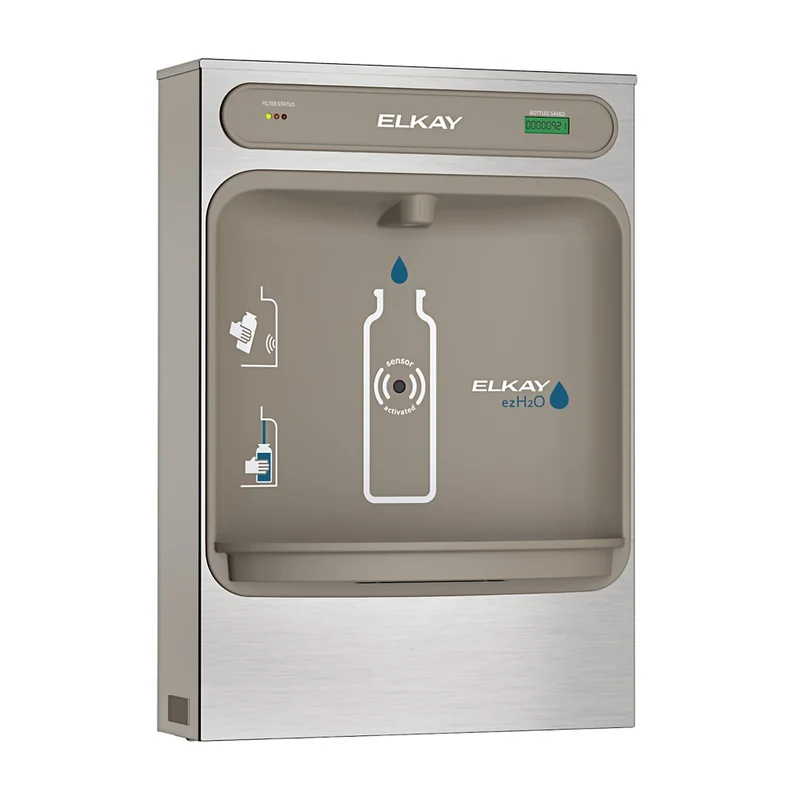

EZH2O Water Bottle Filling Station | Wall Mount

Fill your water bottles in an instant. Ideal for educational institutions, healthcare centres, fitness clubs, hospitality and public spaces. Sensor-activated, compact and wheelchair accessible design, visual filter indicator, easy installation. This model is wall-mounted. The water is not cooled.

Water bottle filling station with quick fill water tap: 4,2 to 5,7 liters of water per minute!

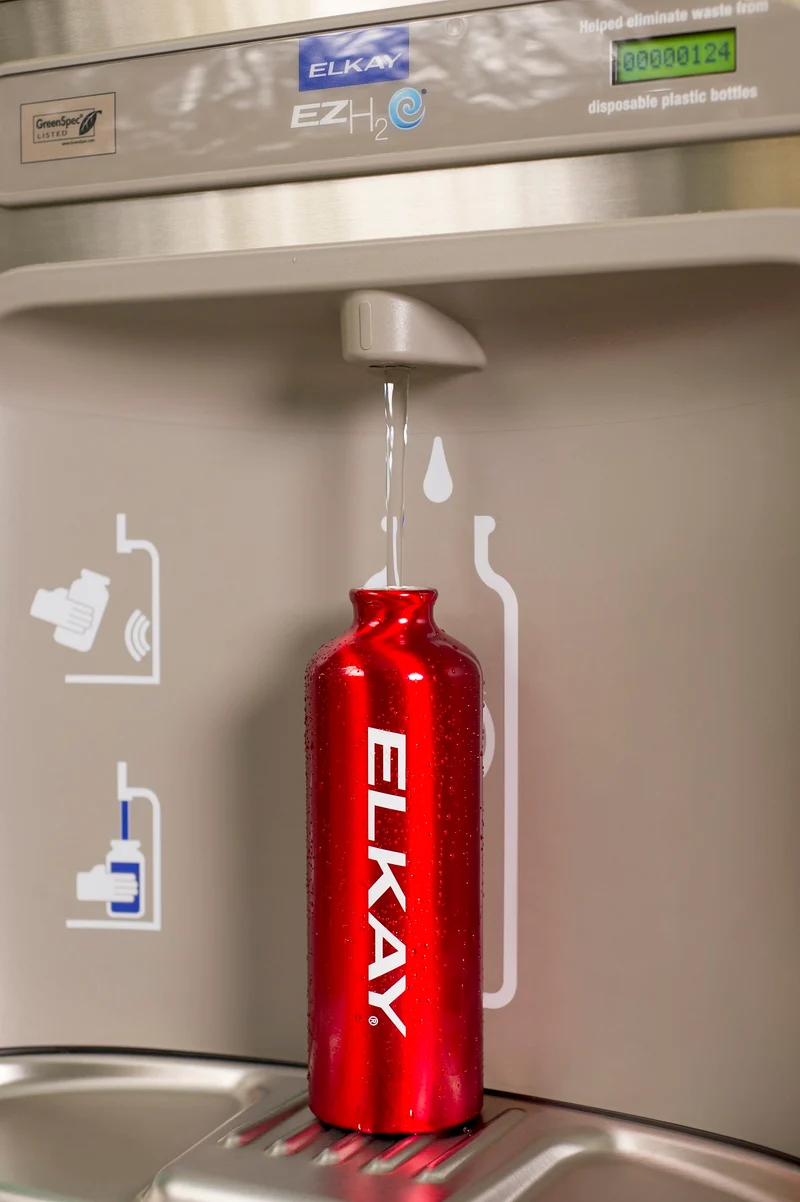

The water bottle filling station dispenses an impressive 4,2 to 5,7 liters of water per minute. That's 3 times (!) faster than other filling stations. The filling station is sensor-activated, so it automatically turns on when you hold a water bottle under the tap. When you remove the water bottle, the tap automatically stops. The tap provides a smooth, even flow of water and doesn't splash.

The filling station is equipped with a green ticker. This is a counter that shows your users how many bottles have been saved by using this water tap. You are giving a clear sustainable, green message to your users.

[block=Delivery and installation]

If we deliver and connect a wall-mounted water cooler or water bottle filling station with or without a water fountain, there are a number of things you need to take care of prior to installation:

• Make sure that there is a freely accessible washing machine tap with a ¾” connection with backflow protection in the correct position (see installation manual of the relevant appliance). If you wish to implement the system with a water block, you must take into account the additional installation dimensions of the water block.
• Make sure that there is a freely accessible earthed socket in the correct position (see installation manual of the device in question).
• If the system is equipped with a drain, such as our water fountains and water bottle filling stations, you must ensure that this drain is in the correct position (see installation manual for the device in question).

Note: if your water pressure is too high (> 4 bar) we will have to install an extra freely adjustable (1-4 bar) water pressure reducer for which we will charge extra. In the exceptional case the water pressure is too low (<2 bar) you can install a booster pump if desired for which we will charge extra.

The installation that we can provide for you includes a ¾” connection nipple with quick coupling, water stop, pressure reducing valve (3 bar only for the bubbling version) and max. 2 metres of flexible hose.

In pricing the installation costs, we assume a maximum of 30 minutes installation time per system with a lead time of maximum 15 minutes. In the event of a serious exceedance of this installation time per system by more than 50% (i.e. from one hour including lead time), we will charge extra man-hour costs per period of 30 minutes at the applicable rate.
