SVBONY SV241 Astronomy DC+USB HUB Box

SVBONY SV241

DC + USB HUB Box PowerBox

Meet the SVBONY SV241: the little box that makes your rig feel like it finally has its life together. It’s a combined power distribution + data hub designed to cut down cable chaos, keep devices fed with stable power, and give your imaging train a clean “one hub to rule them all” layout. The result: fewer snags, fewer mystery disconnects, and a setup that’s faster to deploy when the sky actually cooperates.

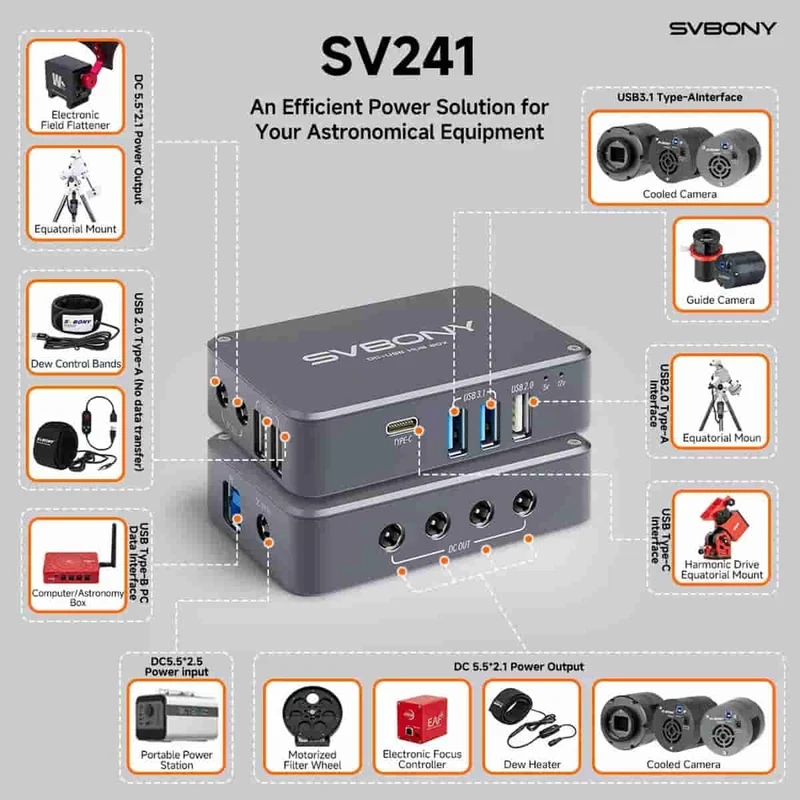

• Multi-port power + data hub built for astrophotography rigs

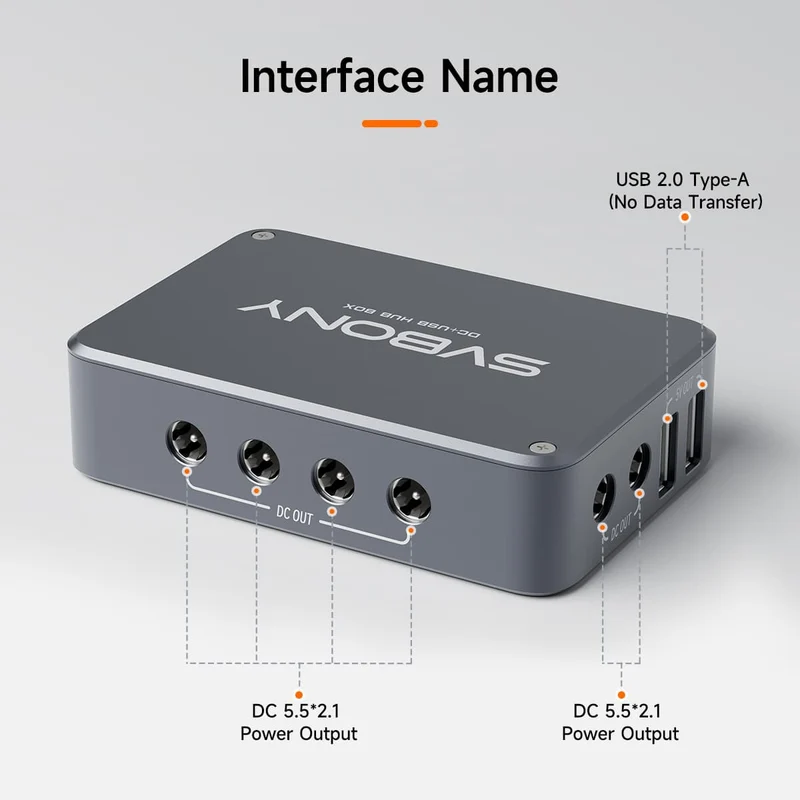

• 6x DC outputs with up to 10A support for powering multiple devices from one place

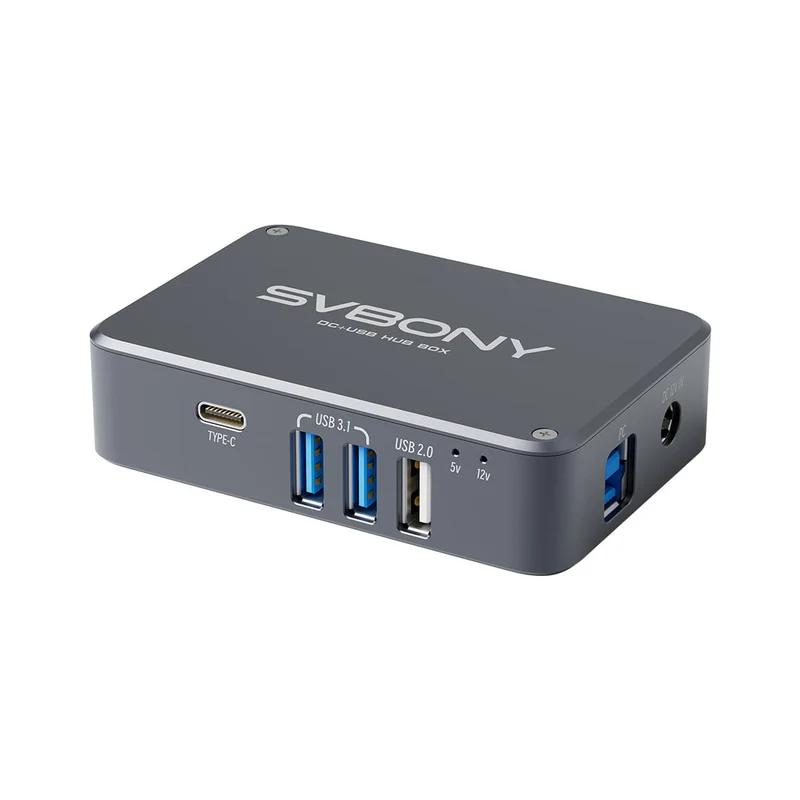

• USB layout for real-world imaging needs:

  • 2x USB 3.1 ports for high-speed camera readout

  • 1x USB 2.0 for lower-bandwidth devices

  • 1x USB Type-C for compatible gear (mounts, guide cameras, etc.)

• Two USB power ports share 5V / 8A, great for accessories like dew heaters

• Acts as a power + data transfer center to reduce cable clutter and streamline routing

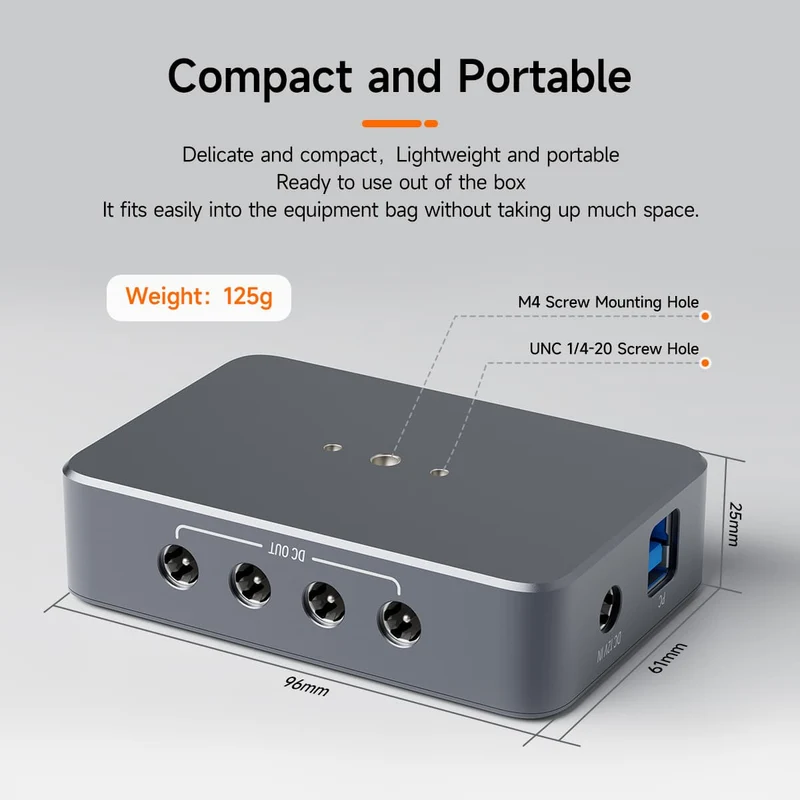

• Compact and portable: only 0.28 lb, sized 3.8 x 2.4 x 1 in

• Built-in protection for safer nights in the field: ESD protection, reverse polarity prevention, and filtering to help prevent short circuits

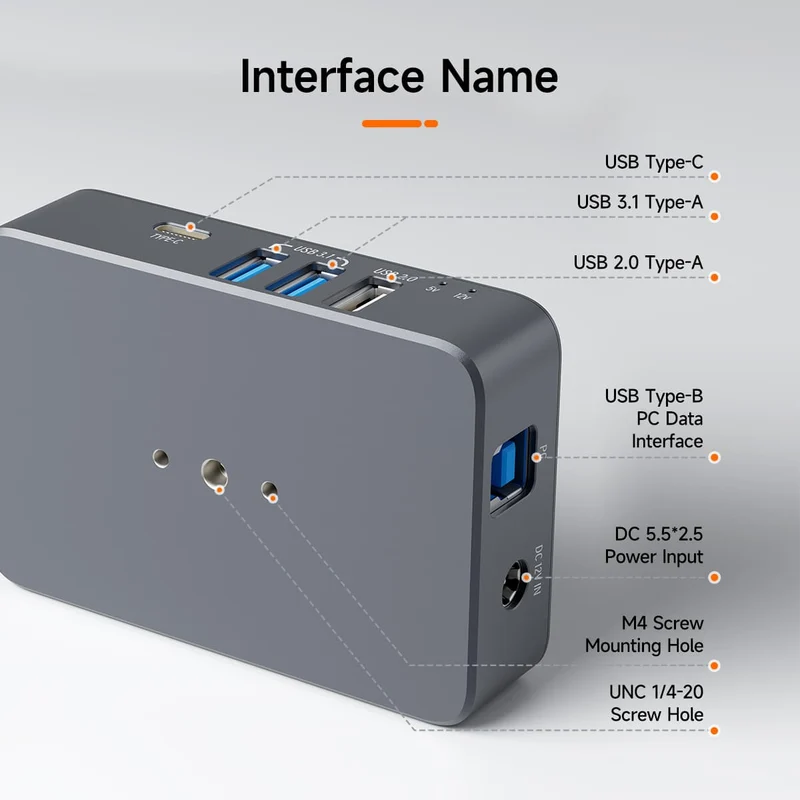

• Flexible mounting: bottom has M4 and UNC 1/4-20 mounting holes

Important note: You must connect a data cable to a computer or astro box to activate the output interface—otherwise the outputs will not be powered.

Specifications

• Model: SVBONY SV241

• Type: Astronomy DC + USB hub / power distribution box

• DC outputs: 6 ports

• Total DC support: Up to 10A

• USB ports:

  • 2x USB 3.1

  • 1x USB 2.0

  • 1x USB Type-C

• USB power sharing: 2 USB power ports share 5V / 8A

• Protection: ESD protection, reverse polarity protection, filtering (short-circuit prevention support)

• Mounting: M4 and UNC 1/4-20 threaded holes (bottom)

• Dimensions: 3.8 x 2.4 x 1 in

• Weight: 0.28 lb

• Activation requirement: Outputs activate only when connected via data cable to computer/astro box

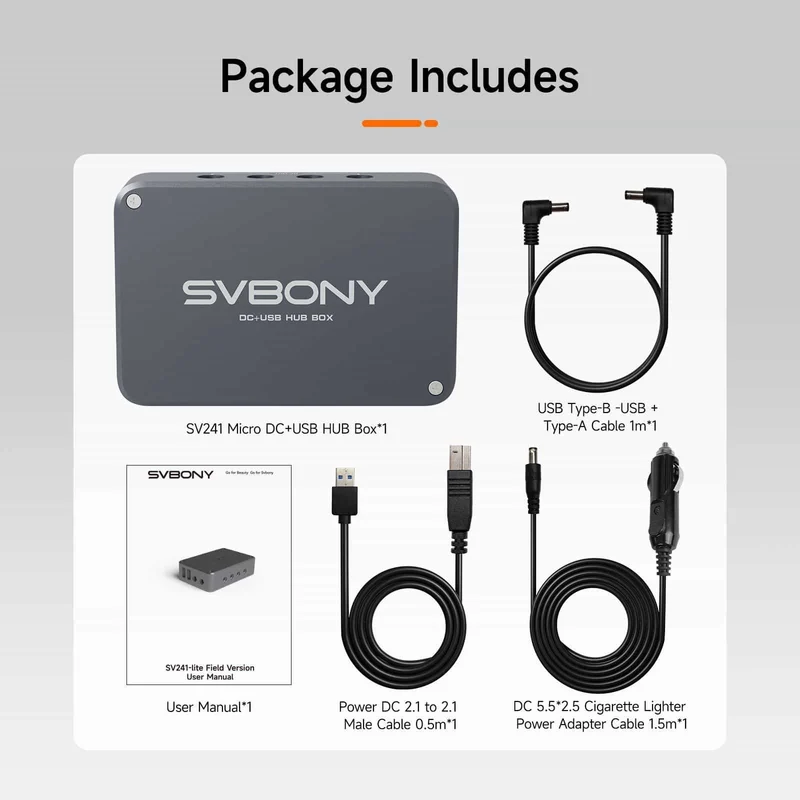

What’s in the box?

• SVBONY SV241 Astronomy DC + USB HUB Box

Software and Docs

• None specified (hardware hub; requires data connection to activate outputs)
