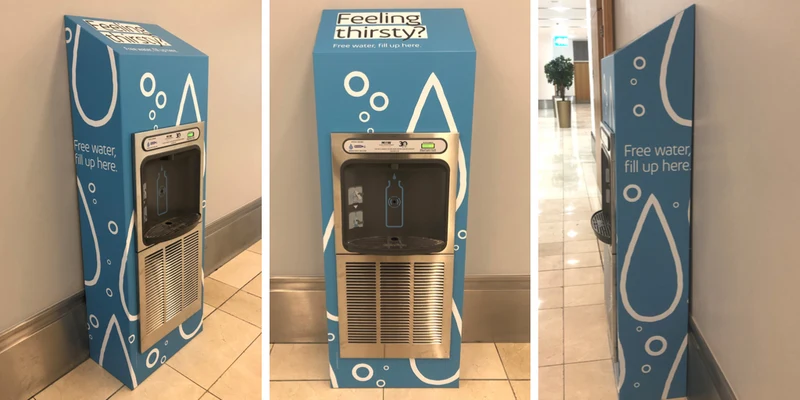

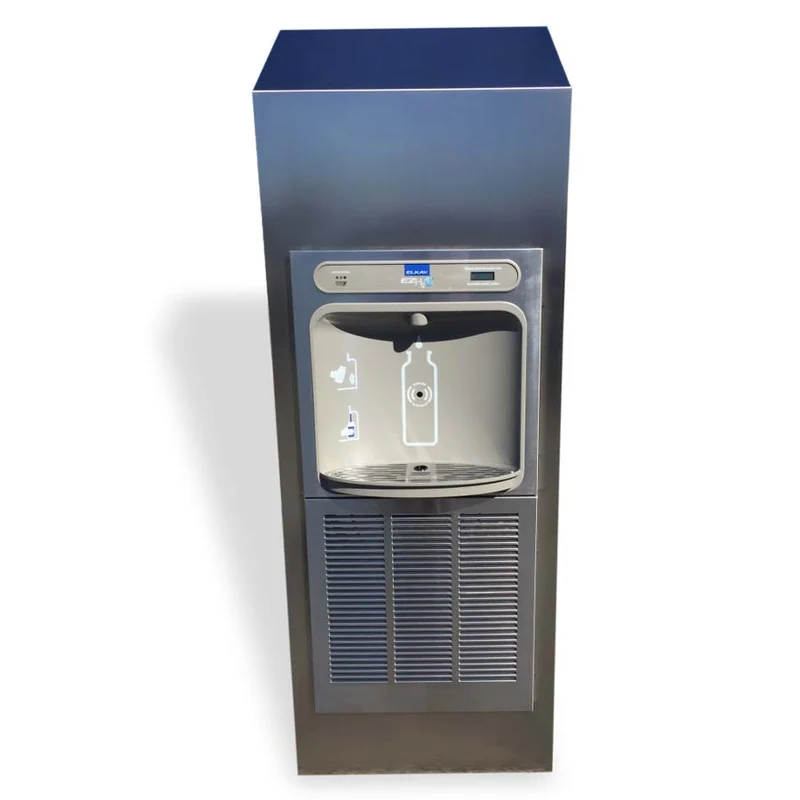

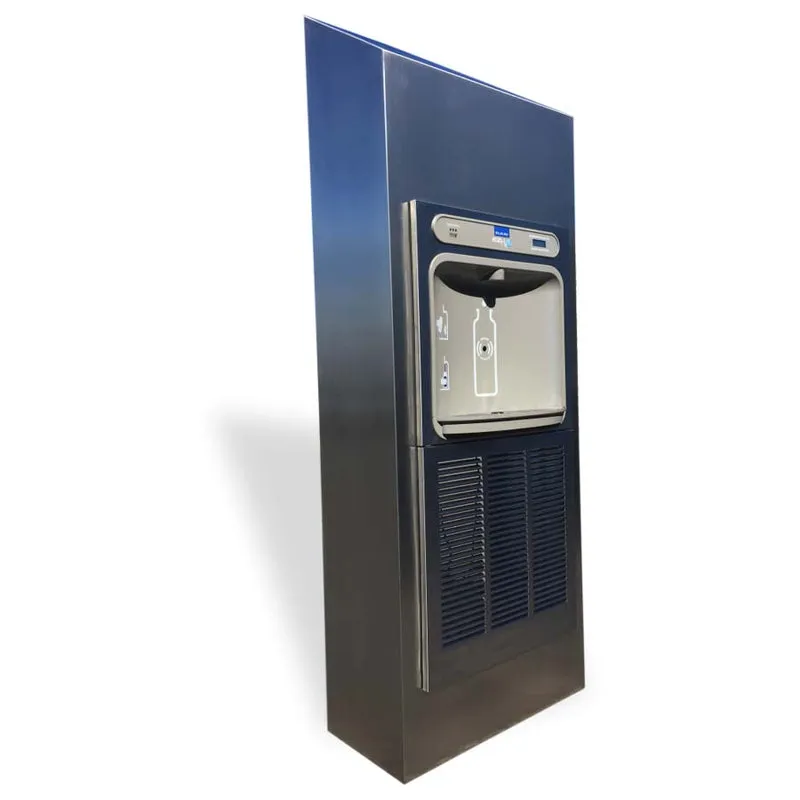

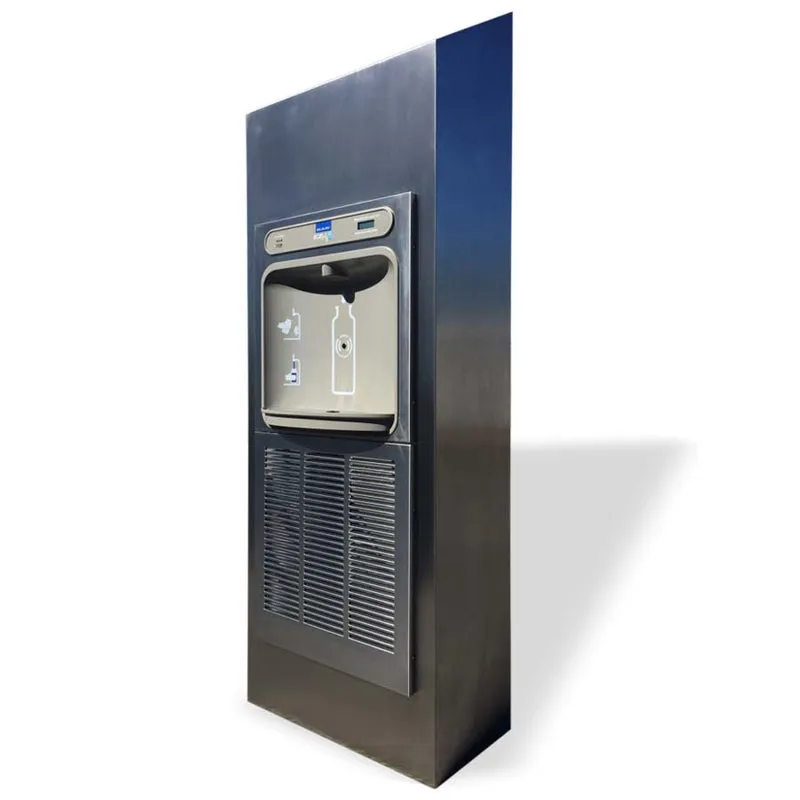

Water bottle filling station Eco UV MAX, refrigerated

From train stations to shopping centres and schools, the Eco UV MAX CHILLED water bottle filling station is the ultimate drinking solution for high footfall areas. The durable design delivers up to 80 litres of filtered chilled water per hour. The WRAS approved unit is designed for durability, speed and convenience and can deliver up to 80 litres of chilled water per hour depending on the inlet feed water temperature. The filtered water is further cleaned using an advanced UV sterilisation system designed to kill 99,99% of bacteria and viruses in the water. The filter removes odours and improves the taste. If you are drawing more than 80 litres per hour this is not a problem but the temperature of the chilled water can slowly increase.

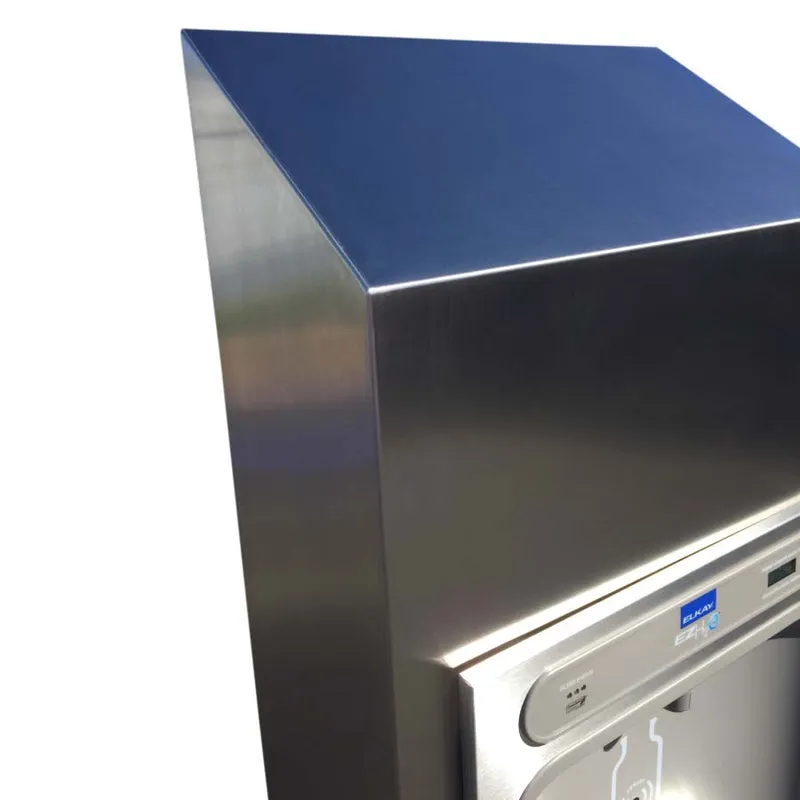

The 316L stainless steel housing makes the system robust, durable and vandal resistant. The finish is of such a standard that it requires little effort to clean and keep the system looking presentable. The Eco UV MAX CHILLED water bottle filling station is low maintenance, with a modular design for easy upgrade and repair, making it an excellent choice for any busy public space.

[block=Specifications]

• Including water filter
• Dimensions: 1690 x 610 x 309 mm (HxWxD)
• Wall mount included
• To be connected to drain
• Weight kg 58,5
• Capacity: 80 liters per hour
• Water temperature: 3-10 degrees Celsius

[block=Description]

The Eco UV MAX COOLED water bottle filling station is a tap water bottle filling station equipped with one of the most advanced UV water sterilization systems that kills any bacteria present in the tap water. The high-flow UV disinfection system has a lifespan of 6000 hours of use or 3 years (whichever comes first) and thus offers long-term, low-maintenance sterilization of the tap water, keeping the water clean and safe for users. The water is purified at a rate of 4,5 liters per minute and is only active when tapping, which minimizes energy consumption and extends the lifespan of the UV lamp. The UV disinfection system uses only 9,5 watts of energy and is therefore one of the most energy-efficient and cost-effective water bottle filling stations on the market.

It is more than the energy-efficient design that makes this filling station so unique. The modular design makes it possible to expand the system with, for example, an optional wastewater pump when the system cannot be connected directly to the sewer. Each component can be replaced easily and relatively cheaply, which extends the life of the unit. Convinced of the sustainable design of the Eco UV MAX bottle filling station, we even give a 25-year guarantee on the lockable casing.

Safety and ease of use were central to the design of the filling station. All corners are neatly rounded so that people cannot be injured or damaged when the system is set up in narrow passages. The filling station is accessible for wheelchair users, in accordance with (ADA) American Disabilities Act. The system is designed in such a way that bags and/or packages are not placed on the system, which reduces safety risks and the system is equipped with sturdy mounting points to secure it to the wall and/or floor. A 30mA RCD electrical protection provides additional safety for the user.

The Eco UV MAX water bottle filling station without additional cooling is a small, versatile, high-performance bottle filler for busy public areas, easy to install, with a choice of two optional waste water pumps.
